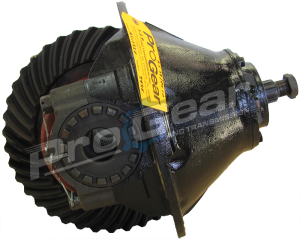

Rebuilt Eaton differentials
Exchange and rebuilt Eaton differentials for heavy duty trucks, and every part your shop needs to rebuild one.
We keep a large inventory of ready to ship exchange Eaton differentials, and we also rebuild your own unit. For shops, we stock the gearing, cases, seals, gaskets, axle and bearing kits to rebuild new or used Eaton rear ends for on highway, off highway, industrial, agricultural, construction, mining and logging work. If you need ten items for one rebuild, make one call.

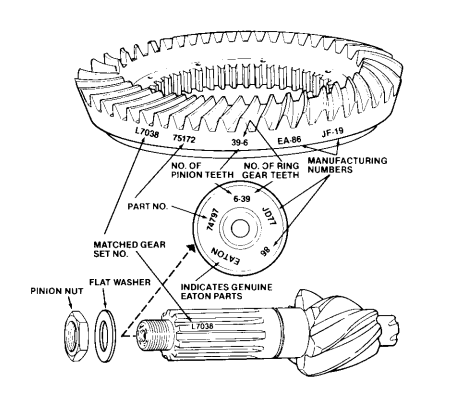

Eaton ring gear and pinion identification
The ring gear and drive pinion are matched parts and must be replaced as a set. Both are stamped to help you identify them: the number of pinion teeth and ring gear teeth (for example 6-39), each part's own part number, and the matched gear set number, which is the same on the ring gear and the pinion. The word EATON on the pinion face marks a genuine Eaton part. Give us those numbers and we can match the set.
Eaton differentials we stock
- Single reduction, with or without wheel differential lock: DS344, RS344, DS402, RS402, DS404, RS404, DS405, RS405, DS454, RS454, DD404, RD404, DA404, RA404, DSP40, RSP40, DSP41, RSP41, DSH40, RSH40, DST40, RST40, DST41, RST41
- Single and tandem series: 15040S, 19050S, 19055S, 21065S, 22065S, 19055D, 19060D, 21060D, 21065D, 21080D, 22060D, 22065D, 23070D, 23080D, 23085D, 23105D, 26080D
- Controlled traction, medium duty: 17401, 17421, 21421, 22421, DC381, DC401-P, DC402, DC451-P
- Controlled traction, heavy duty: 23105C, 26105C, 30105C, 23421, 26421, 23085, DC460-P, DC480-P, DC461-P, DC521-P
- Two-speed: DT340, DP340, DT341, DP341, DT380, DP380, DT381, DP381, DT400, DP400-P, DT401, DP401-P, DP402, DP451-P, RT340, RP340, RT341, RP341, RT381, RP381, RT400, RP400-P, RT401, RP401-P, RT402, RP402, RT451, RP451-P
S140 series single axles
The S140 series (S17-140, S19-140) is a single reduction axle for straight trucks up to 19,800 lb GAWR: pickup and delivery, school bus, midi bus, motor home, municipal and utility work. Ratios: 3.31, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56, 4.88, 5.29, 5.57, 6.14 and 6.50.
Heavy duty tridem drive axles
Built for vocational work: construction, heavy haul, logging, oil field and mining.
| T69-170HP | 160,000 lb max GAW rating. Ratios 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56, 4.78, 5.25, 5.38, 5.57, 6.14, 6.83, 7.17 |
|---|---|
| T78-190P | 240,000 lb max GAW rating. Ratios 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56, 4.78, 5.25, 5.38, 5.57, 6.14, 6.83, 7.17 |
| T78-590P | 240,000 lb max GAW rating. Ratios 4.75, 4.99, 5.19, 5.44, 5.70, 5.98, 6.34, 6.65, 7.30, 7.48, 7.75, 8.55, 9.51, 9.97, 10.90 |
If you do not see your model in the online store, that does not mean we do not have it. Call with a part number, or without one, and we will find the right unit. We export worldwide.
Need a transmission or differential today?
Give us the model and serial tag number, or the ratio off the differential tag. We will find the unit or the part, price it and ship it.
